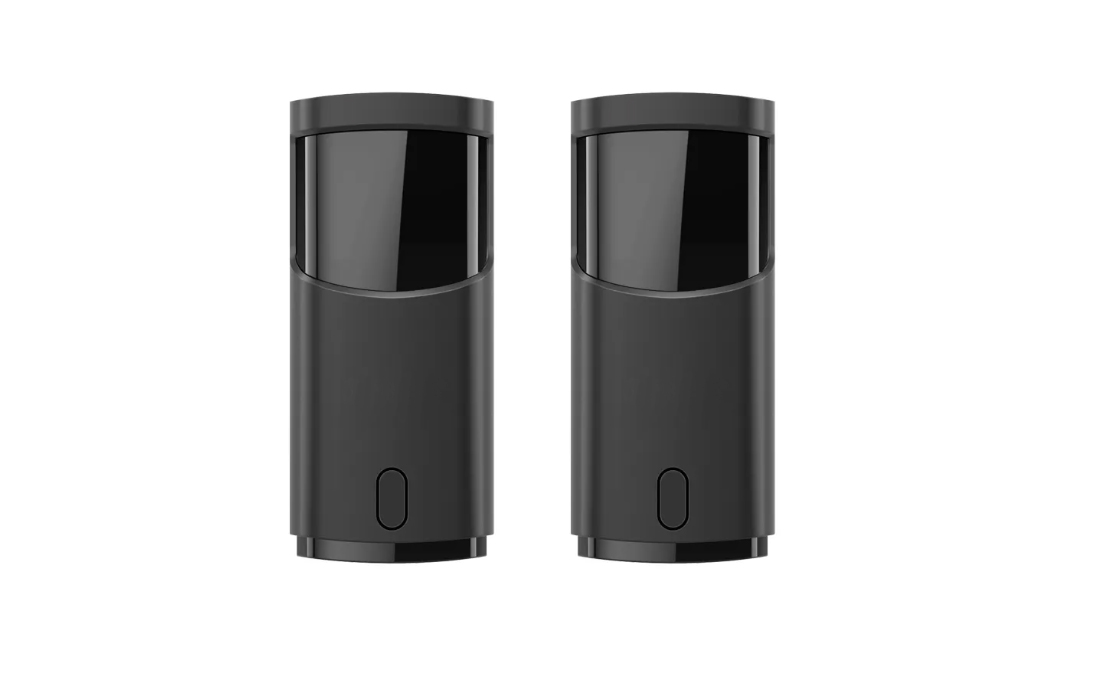

NB180 Gate safety sensors (adjustable 180 degrees)

The NB180is a set of universal 180 degree gate safety sensors that is designed to be compatiblewith all electric gates excluding gate automation systems with a blue bus safetyinputs. They are IP55 rated and suitable for external andinternal use. Due to their adjustable optical lens the NB180 beams can be adjustedto any angle up to 180 degrees for ease of alignment and ease of installation,they have a maximum range of 15 meters. The beams have a wide power input rangefrom 12 to 36 volts AC and DC, so will work on any electric gate automationwith12 volt, 24 volt, and 36 volt outputs and anything in-between. The beamscan be used for gate safety or as a way of triggering the gates to open as thereis a switch that can be adjusted to change the relay output of the NB180 from Normallyopen to normally closed. This makes the NB180 an extremely versatile product. Theycan also be used on access control and security systems if required.

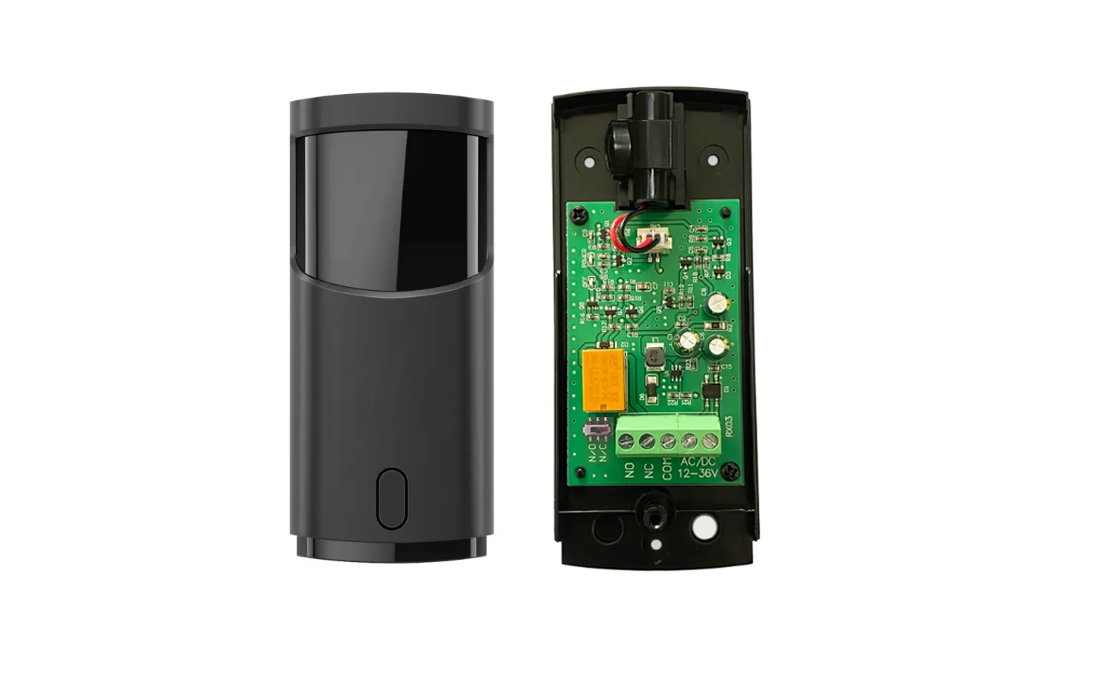

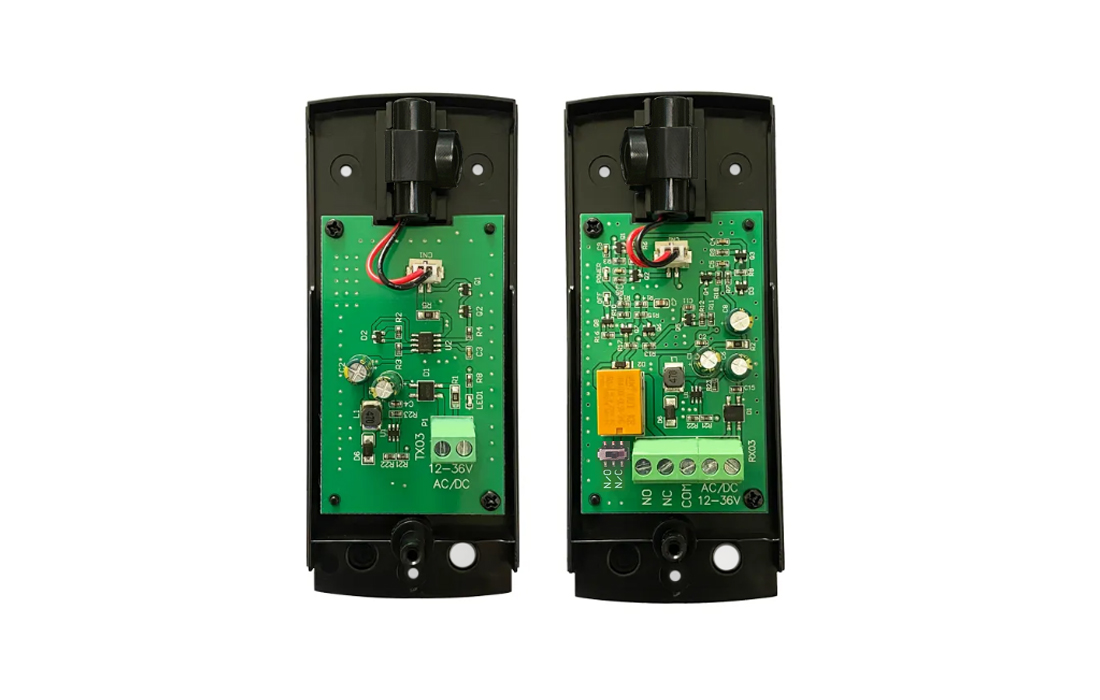

The benefit of the 180 degree adjustable optical lens isthat held in position from above and below  making it very stable, so is less likely tobecome unaligned over time, this is considerably more stable than otherversions with single ball joint holding the PCB from below.

Dimensions each= H 132, W 57, D 35mm
