Digital Keypads

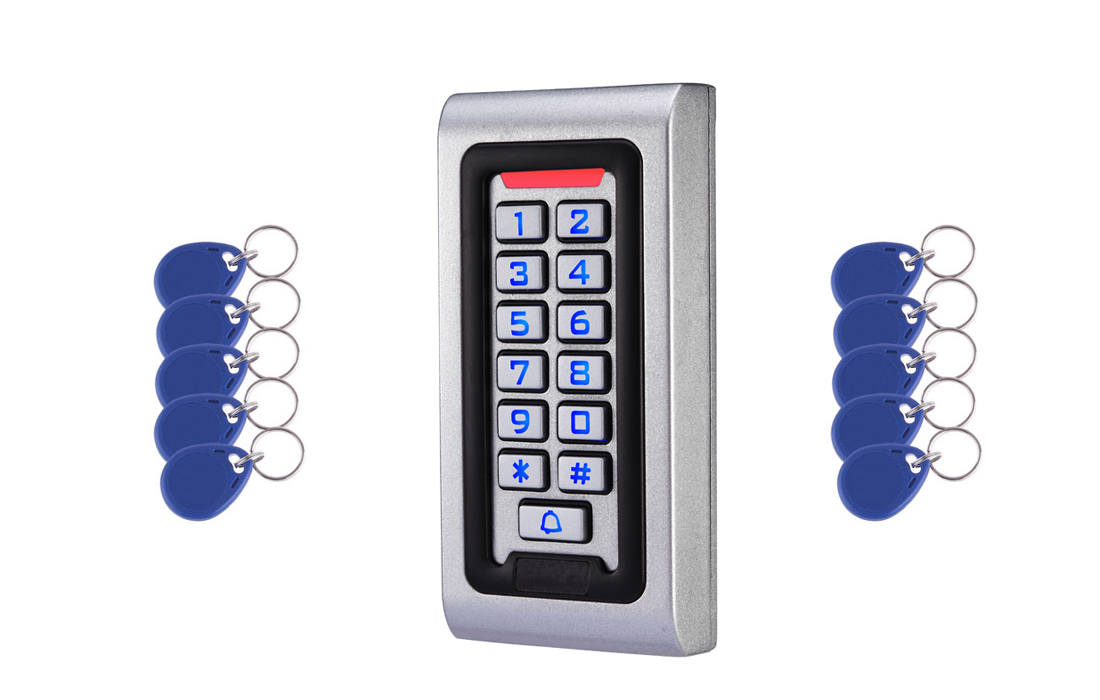

1. The Stand alone Back-lit Keypad with Proximity Reader is stylish and robust; it is suitable for internal or external use, and is very easy to install. The Keypad has a built-in Proximity read and can take up to 1000 users by code or proximity tags, which can be set up to operate in three different ways: PIN Code only, Prox Tag only and Prox+PIN. The keypad is made from a vandal resistant zinc alloy and has electric blue back-lit buttons for easy night time visibility, plus three indication lights for access granted, access denied and programming mode. The keypad has a normally open, common and normally closed clean contact output (Maximum 3Amp), with a time adjustment from 1 to 25.5 seconds. The keypad requires 12 to 26 Volts DC power and is IP 68 rated, water resistant and suitable for outside use.
2. Manuel
   Quick start Guid

Dimensions; 120 x 58 x 20 mm

The Package consists of;

1 x The Stand Alone Back Light Keypad with Proximity Reader

10 x Proximity Tags

1 x Fixing Pack

1 x User Manual

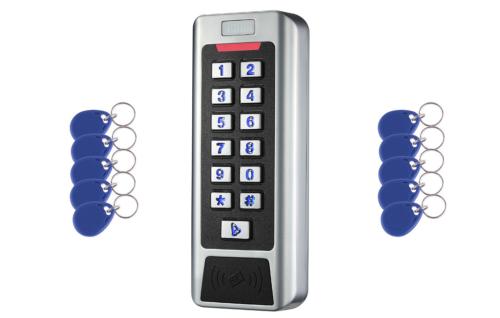

1. The 2 channel Stand alone Back-lit Keypad with Proximity Reader is stylish and robust; it has 2 relay outputs that enables you to be able to trigger 2 separate entrances such as vehicular and pedestrian gates, it is suitable for internal or external use, and is very easy to install. The Keypad has a built-in Proximity read and can take up to 1000 users by code or proximity tags, which can be set up to operate in three different ways: PIN Code only, Prox Tag only and Prox+PIN. The keypad is made from a vandal resistant zinc alloy and has electric blue back-lit buttons for easy night time visibility, plus three indication lights for access granted, access denied and programming mode. The keypad has a normally open, common and normally closed clean contact outputs (Maximum 3Amp), with a time adjustment from 1 to 25.5 seconds. The keypad requires 12 Volts DC power and is IP68 water resistant rated.

2. Manuel
   Quick start Guid

Dimensions; 145 x 58 x 20 mm

The Package consists of;

1 x 2 Channel Stand Alone Back Light Keypad with Proximity Reader

10 x Proximity Tags

1 x Fixing Pack

1 x User Manual

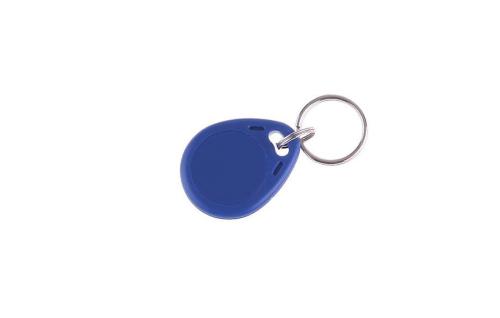

1. Additional or replacement fobs/proximity tags for key pad and prox readers..
2. Manuel
   Drawing

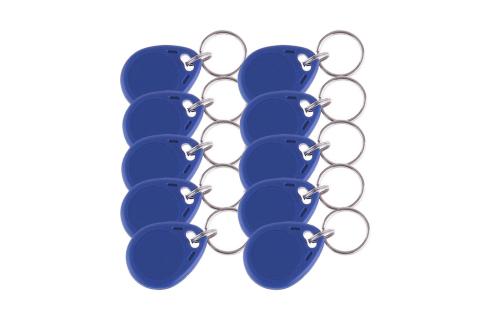

1. Additional or replacement fobs for the prox reader of our key pad pack of ten.
2. Manuel
   Drawing

1. Additional or replacement fobs/ prox tags for 125Khz proximity readers, pack of 50.
2. Manuel
   Drawing
